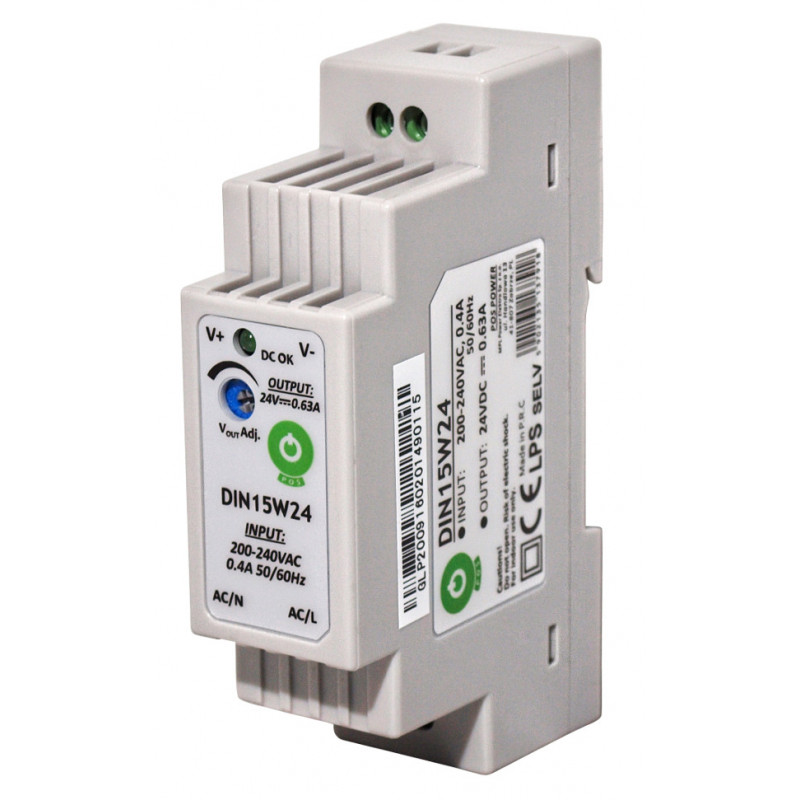

DIN15W24 DIN Rail Power Supply - 24 Volt - 0.63 Ampere - 15 Watt

Manufacturer:

This power supply can be mounted on a DIN rail and is suitable for 24 volt devices up to 0.63 ampere.

9,50 € incl. VAT, excl. shipping

Webwinkel Keurmerk

More info

POS Power DIN series

The DIN series from POS Power are power supplies that can be installed on a TS-35 DIN rail. These DIN rail power supplies accept all European mains voltages from 180 to 264 volts, making them usable in all European countries. Of course they meet all safety requirements and include short-circuit protection.

Data sheet

Output voltage 24 volt
Output voltage adjustment range 21 to 27 volt
Output current 0.63 ampere
Power 15 watt
Line regulation ±1%
Load regulation ±1%
Tolerance ±5%
Ripple and noise 300 millivolt peak to peak
Input voltage 180 to 264 volt
Input frequency 47 to 63 hertz
Efficiency 83%
No load power consumption 0.5 watt
Power factor At least 0.9
Setup time 500 milliseconds
Rise time 250 milliseconds
Hold up time 20 milliseconds
Protection Over current, Over temperature, Over voltage, Short circuit
Working temperature -20 to 50 °C
Working humidity 45 to 85%
Storage temperature -30 to 70 °C
Storage humidity 10 to 95%
