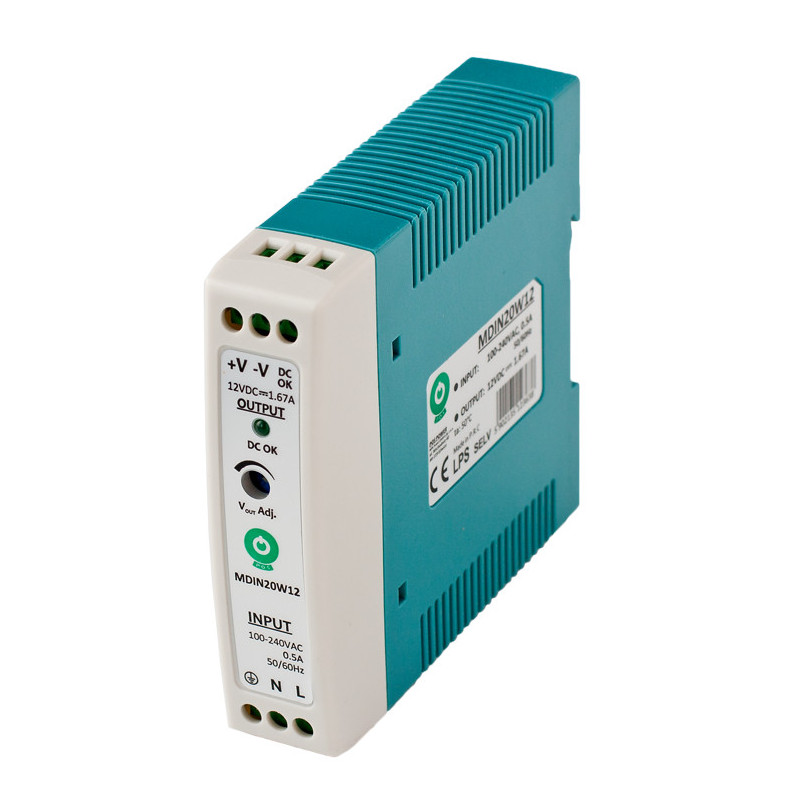

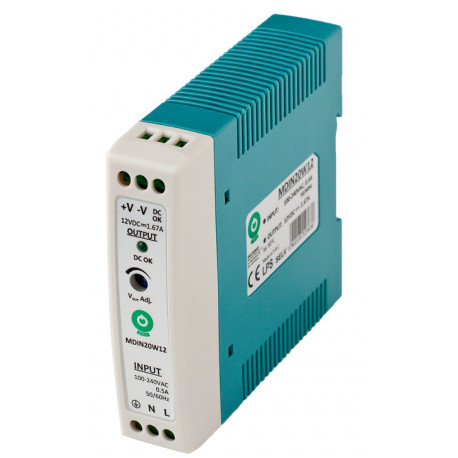

MDIN20W12 DIN Rail Power Supply - 12 Volt - 1.67 Ampere - 20 Watt

Manufacturer:

This power supply can be mounted on a DIN rail and is suitable for 12 volt devices up to 1.67 ampere.

13,50 € incl. VAT, excl. shipping

Webwinkel Keurmerk

More info

POS Power MDIN series

The MDIN series from POS Power are power supplies that can be installed on a TS-35/7.5 or TS-35/15 DIN rail. These DIN rail power supplies accept all international mains voltages from 90 to 264 volts as input voltage, making them usable in other countries as well. In addition they meet all safety requirements and include short-circuit protection.

Data sheet

Output voltage 12 volt
Output voltage adjustment range 11 to 13.8 volt
Output current 1.67 ampere
Power 20 watt
Line regulation ±0.5%
Load regulation ±2%
Tolerance ±5%
Ripple and noise 280 millivolt peak to peak
Input voltage 90 to 264 volt
Input frequency 47 to 63 hertz
Efficiency 80%
No load power consumption 1 watt
Power factor At least 0.5
Setup time 820 milliseconds
Rise time 70 milliseconds
Hold up time 65 milliseconds
Protection Over current, Over temperature, Over voltage, Short circuit
Working temperature -20 to 50 °C
Working humidity 45 to 85%
Storage temperature -30 to 70 °C
Storage humidity 10 to 95%
