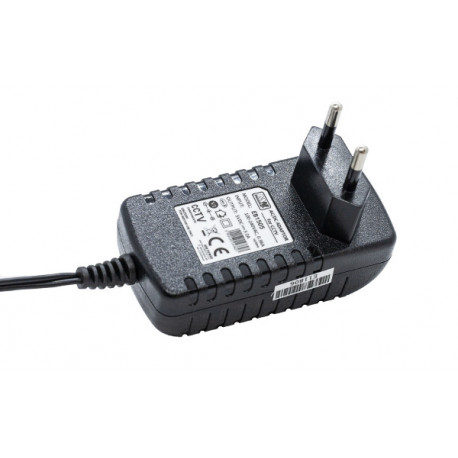

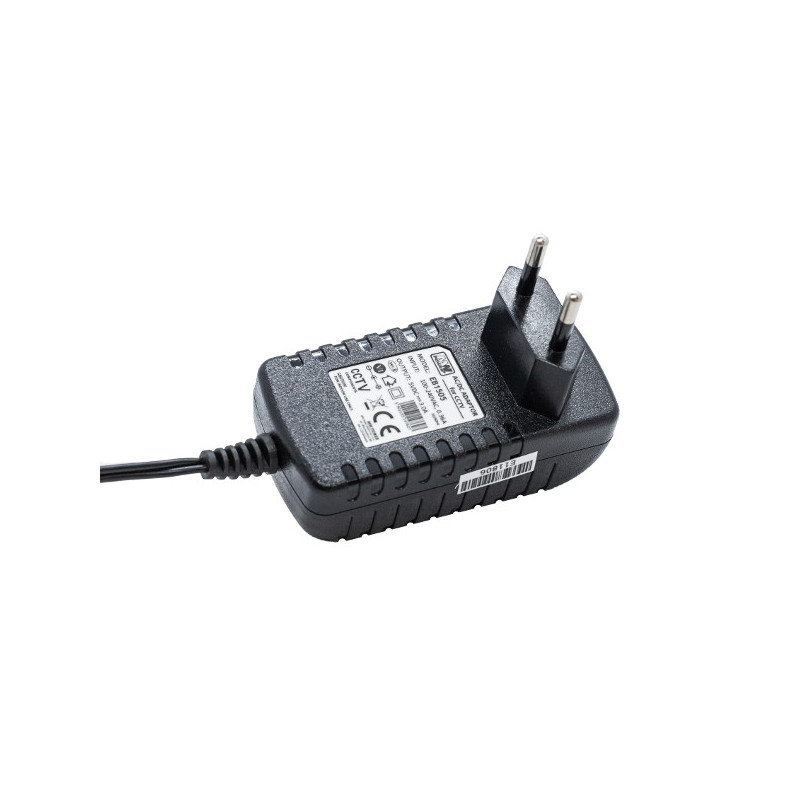

EB1505 Power Supply Adapter - 5 Volt - 3 Ampere - 15 Watt

Manufacturer:

This power supply adapter is suitable for 5 volt devices up to 3 ampere.

7,25 € incl. VAT, excl. shipping

Webwinkel Keurmerk

More info

MW Power EB series

The EB series from MW Power are power supply adapters with a plug with an inner size of 2.1 millimetres and an outer size of 5.5 millimetres. You can plug these power supplies directly into the wall socket. In addition, they accept all international mains voltages from 90 to 264 volts as input voltage, making them usable in other countries as well. They also meet all safety requirements and include short-circuit protection, among other things.

Data sheet

Output voltage 5 volt
Output current 3 ampere
Power 15 watt
Line regulation ±2%
Load regulation ±5%
Tolerance ±8%
Ripple and noise 120 millivolt peak to peak
Input voltage 90 to 264 volt
Input frequency 47 to 63 hertz
Efficiency 82%
No load power consumption 0.075 watt
Setup time 1000 milliseconds
Rise time 20 milliseconds
Hold up time 10 milliseconds
Protection Over temperature, Overload, Short circuit
Working temperature 0 to 40 °C
Working humidity 10 to 90%
Storage temperature -20 to 85 °C
Storage humidity 5 to 90%
