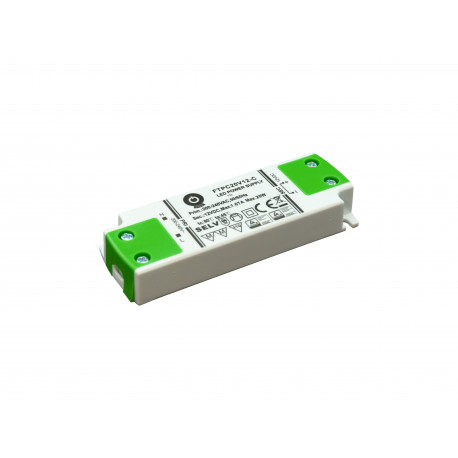

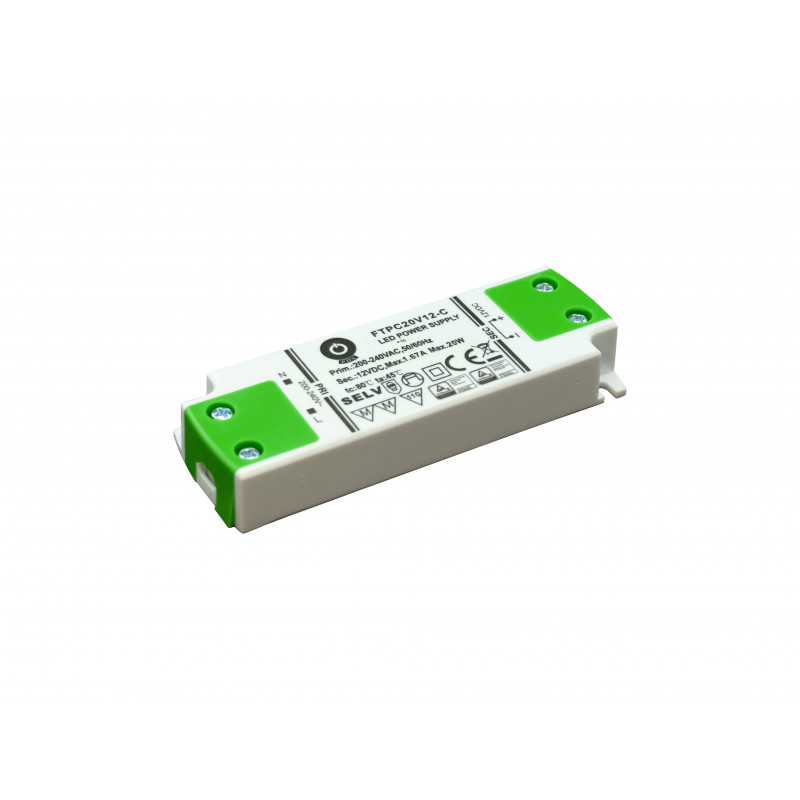

FTPC20V12-C Constant Voltage LED Power Supply - 12 Volt - 1.67 Ampere - 20.04 Watt
Manufacturer: POS Power
This compact power supply is ideal for powering 12 volt LED lighting up to 1.67 ampere.
This product is no longer in stock
More info
POS Power FTPC-C series
The FTPC-C series from POS Power are power supplies that are quite compact. This makes these LED power supplies easy to install anywhere. They are also suitable for installation on furniture made of materials with unknown flammability properties. The models starting from 30 watts contain active power factor correction (PFC), which makes the power factor of these power supplies above 0.9. These power supplies accept all European mains voltages from 180 to 264 volts, making them usable in all European countries. They also meet all safety requirements and include short-circuit protection.
Data sheet
| Output voltage | 12 volt |
| Output current | 1.67 ampere |
| Power | 20.04 watt |
| Line regulation | ±1% |
| Load regulation | ±2% |
| Tolerance | ±5% |
| Ripple and noise | 200 millivolt peak to peak |
| Input voltage | 180 to 264 volt |
| Input frequency | 47 to 63 hertz |
| Efficiency | 85% |
| No load power consumption | 0.5 watt |
| Power factor | At least 0.5 |
| Setup time | 500 milliseconds |
| Rise time | 20 milliseconds |
| Hold up time | 10 milliseconds |
| Protection | Over current, Over temperature, Short circuit |
| Working temperature | -20 to 45 °C |
| Working humidity | 45 to 85% |
| Storage temperature | -30 to 70 °C |
| Storage humidity | 10 to 95% |
