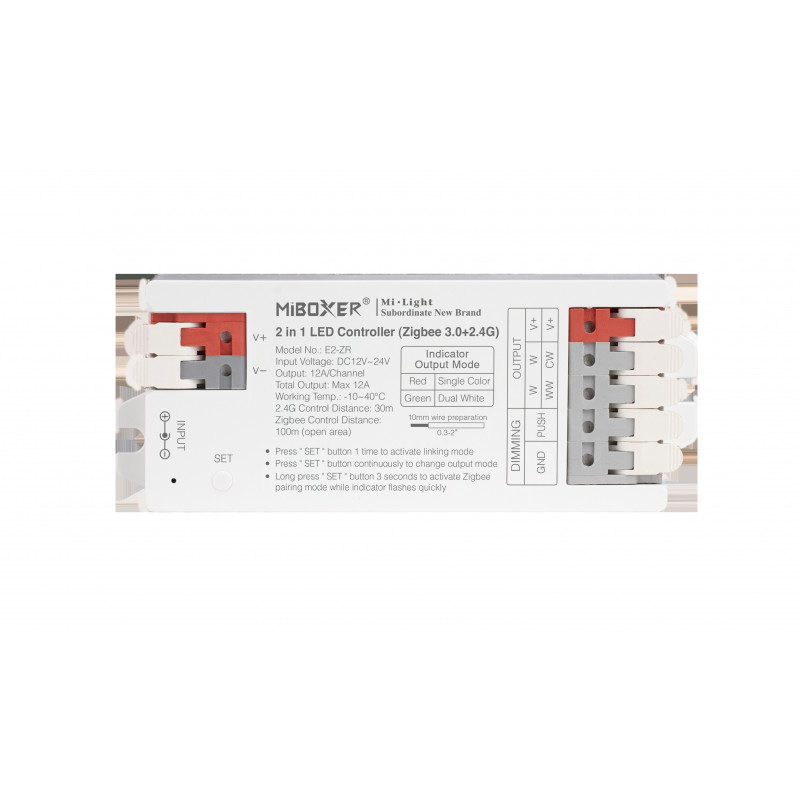

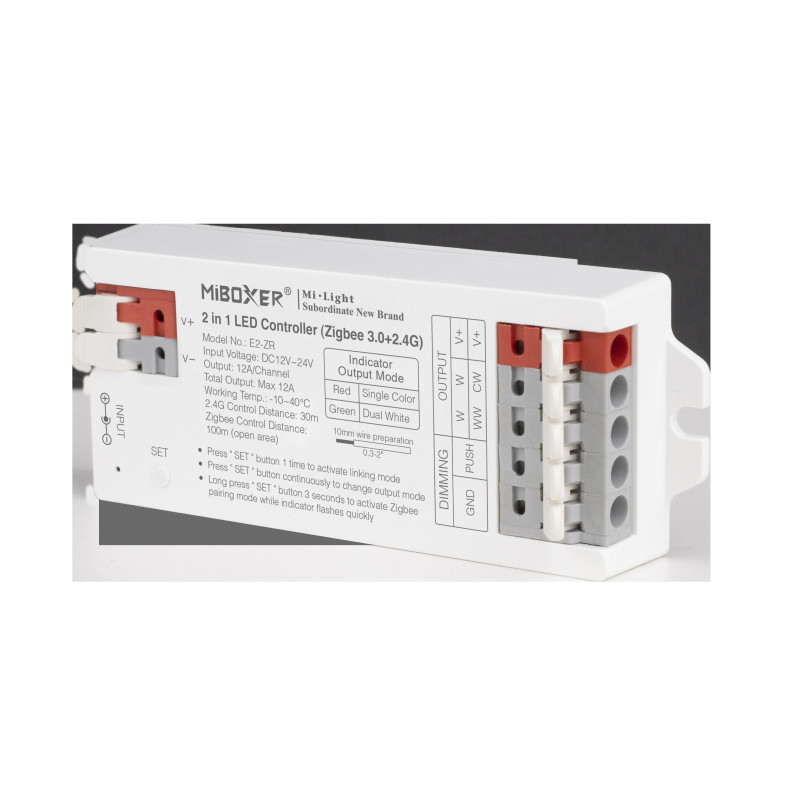

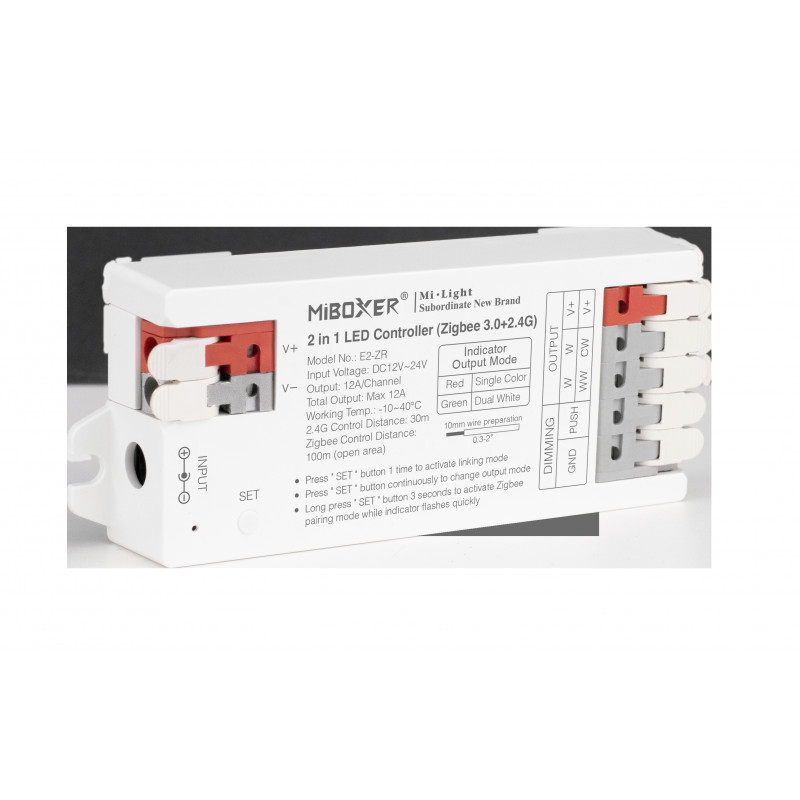

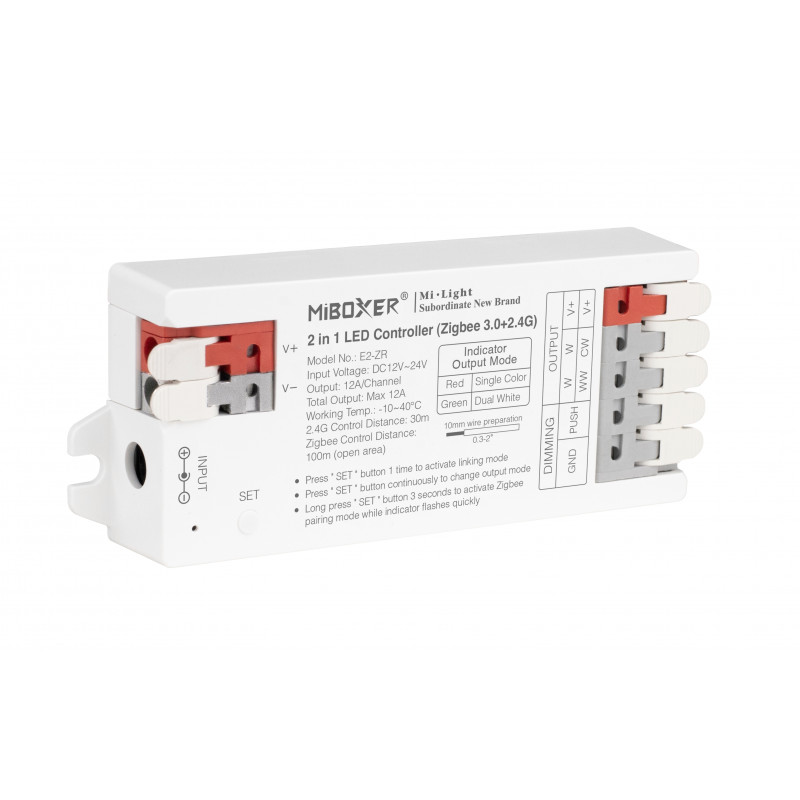

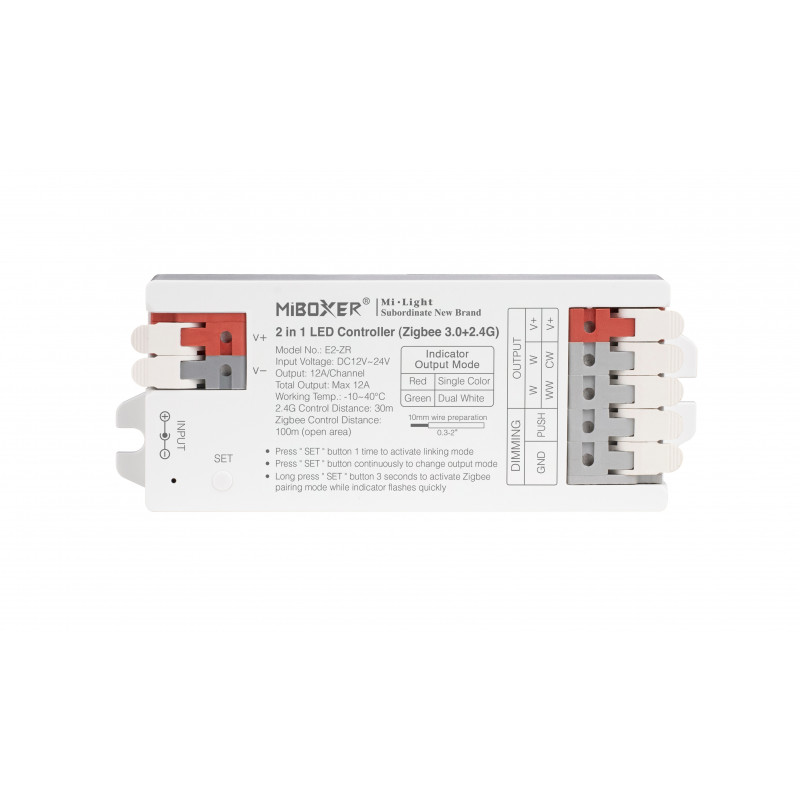

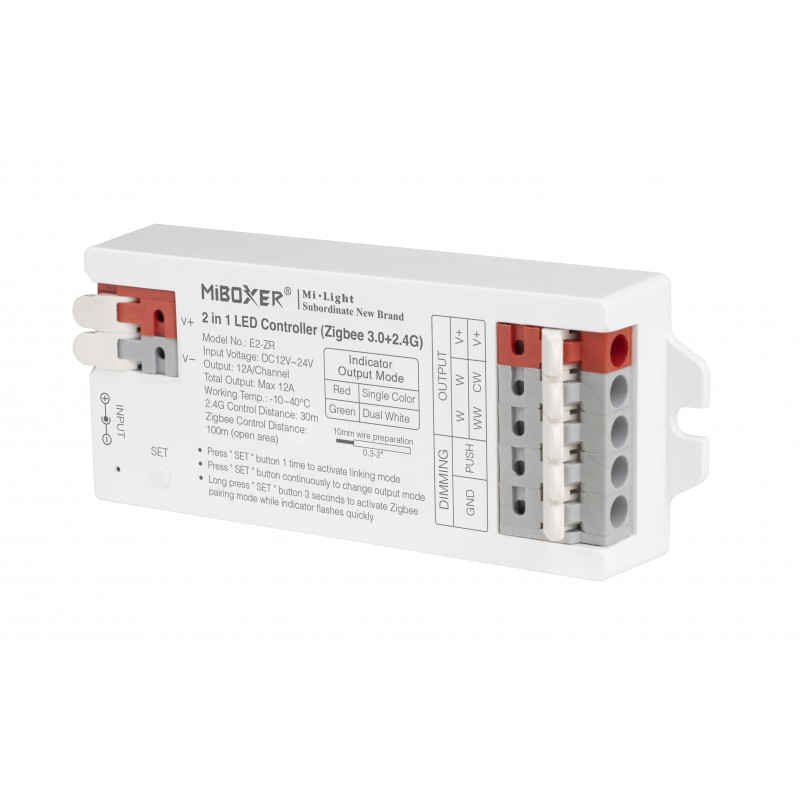

E2-ZR LED Controller - 2 in 1 - Zigbee 3.0 and 2.4 GHz RF

The MiBoxer E2-ZR is a 2-in-1 LED controller that allows you to control your LED strip. This Zigbee LED controller is suitable for LED strips with a voltage between 12 and 24 volt and a maximum current of 12 ampere in total and 12 ampere per channel.

MiBoxer E-series

The E2-ZR is part of MiBoxer’s latest E-series. New in this series are the lever terminals, which make installation easier and mean you no longer need a screwdriver. You can power this LED controller through:

• the lever terminals
• the 5.5x2.1 mm DC jack

The LED controller uses PWM dimming. The frequency can be set to 250 Hz or 16 kHz, although this is only configurable through a 2.4 GHz RF remote control.

You can also set whether the LED controller remembers the last status in the event of a power cut or always switches on when power is restored. This can be done through the app or with a 2.4 GHz RF remote control.

2-in-1 LED controller

The MiBoxer E2-ZR is a 2-in-1 LED controller. This means it works with the following types of LED strips:

• mono (single colour)
• CCT (adjustable colour temperature)

By pressing the SET button several times, you can switch between these modes. The indicator light shows the active mode:

• red: mono
• green: CCT

Zigbee LED controller

This MiBoxer LED controller operates on Zigbee 3.0, a wireless protocol that has been developed specifically for home automation. This makes the LED controller compatible with, amongst others, Home Assistant, Zigbee2MQTT, Tuya, Philips Hue, IKEA TRÅDFRI and Amazon Echo Plus. Thanks to this Zigbee LED controller, you can control your LED strip remotely using your favourite home automation platform.

You can also control the E2-ZR in the following ways:

• through a 2.4 GHz RF remote control from MiBoxer
• through an external push button that you can connect (press briefly to switch on or off, press and hold to adjust the brightness)
