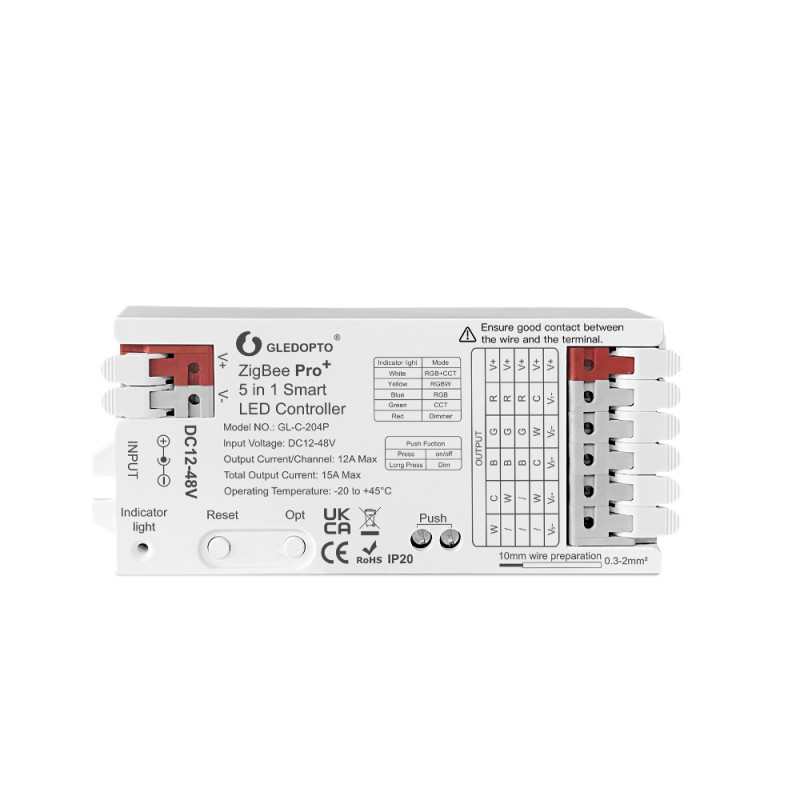

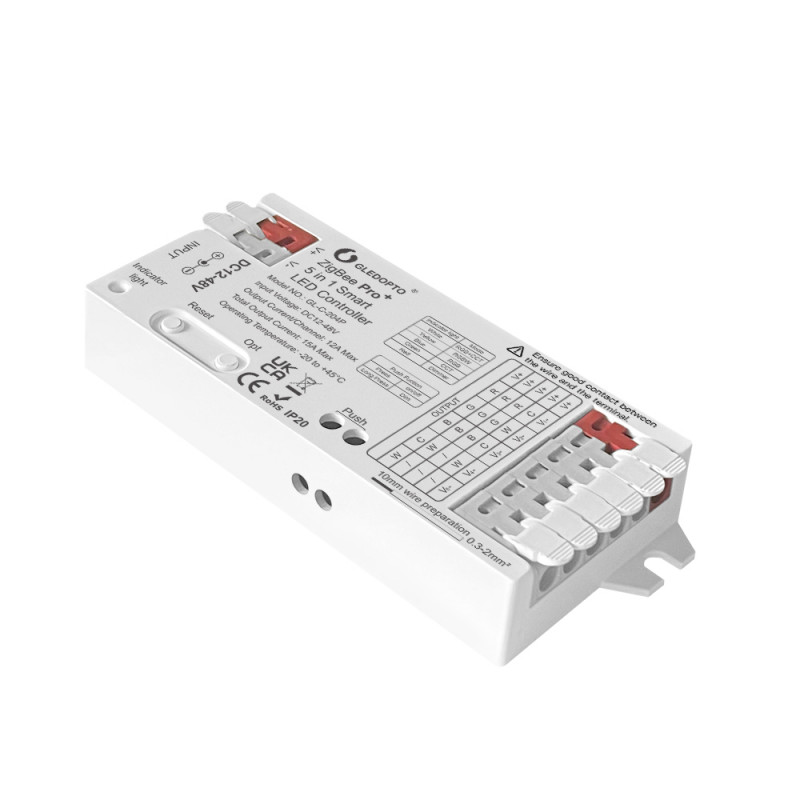

GL-C-204P LED Controller - 5 in 1 - Zigbee 3.0 and 2.4 GHz RF

The GLEDOPTO GL-C-204P is a 5-in-1 LED controller that allows you to control your LED strip. This Zigbee LED controller is suitable for LED strips with a voltage between 12 and 48 volt and a maximum current of 15 ampere in total and 12 ampere per channel. This makes this LED controller suitable for LED strips with a higher voltage.

GLEDOPTO Zigbee Pro+

The GL-C-204P is part of GLEDOPTO’s Zigbee Pro+ series. A new feature here is the lever terminals, which make installation easier and mean you no longer need to use a screwdriver. These practical lever terminals are suitable for wires with a thickness of 0.3 to 2 mm². You can power the LED controller through:

• the lever terminals (up to 15 ampere)
• the 5.5x2.1 mm DC jack (up to 3 ampere)

This LED controller uses PWM for dimming. The frequency can be set to 600, 800, 1000, 2000, 4000 or 8000 Hz using the Reset button.

In addition, by holding down the Opt button for at least 5 seconds, you can set whether the LED controller retains the last status in the event of a power cut or always switches on when power is restored.

5-in-1 LED controller

The GLEDOPTO GL-C-204P is a 5-in-1 LED controller. This means it works with all common types of LED strips:

• mono (single colour)
• CCT (adjustable colour temperature)
• RGB (adjustable colour)
• RGBW (adjustable colour and white)
• RGBCCT (adjustable colour and adjustable colour temperature)

You can press the Opt button to switch between the different modes. The indicator light shows which mode is active:

• red: mono
• green: CCT
• blue: RGB
• yellow: RGBW
• white: RGBCCT

Zigbee LED controller

This GLEDOPTO LED controller operates on Zigbee 3.0, a wireless protocol specifically developed for home automation. This makes the LED controller compatible with, Home Assistant, Zigbee2MQTT, Philips Hue, Amazon Echo Plus, SmartThings and Homey, amongst others. With this Zigbee LED controller, you can easily integrate your LED strip into your existing home automation platform.

In addition to Zigbee, the GL-C-204P supports the following control options:

• through a 2.4 GHz RF remote control from GLEDOPTO
• through an external push button that you can connect (press briefly to switch on or off, press and hold to adjust the brightness)
