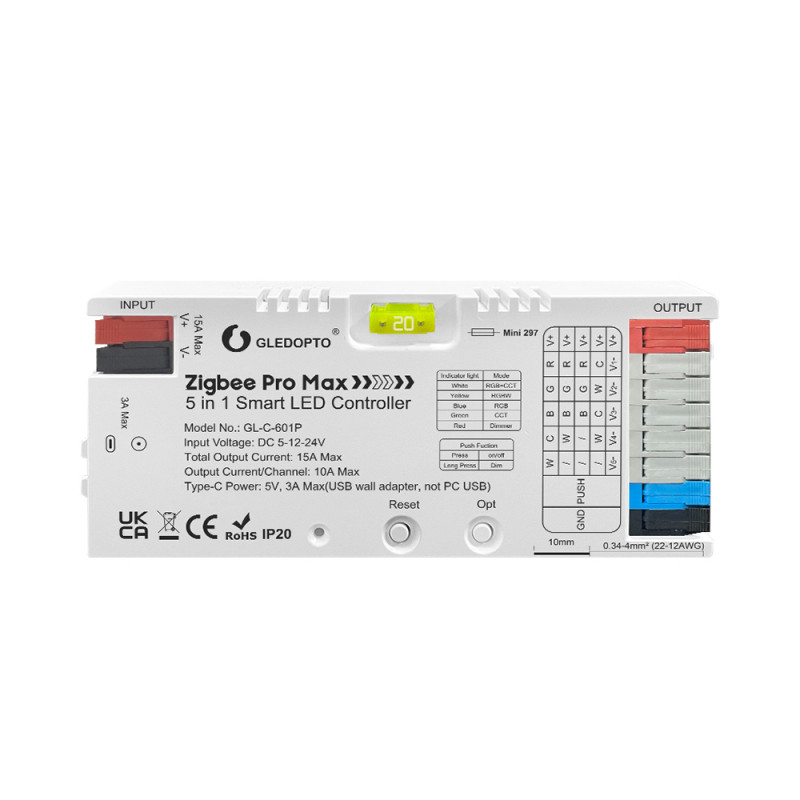

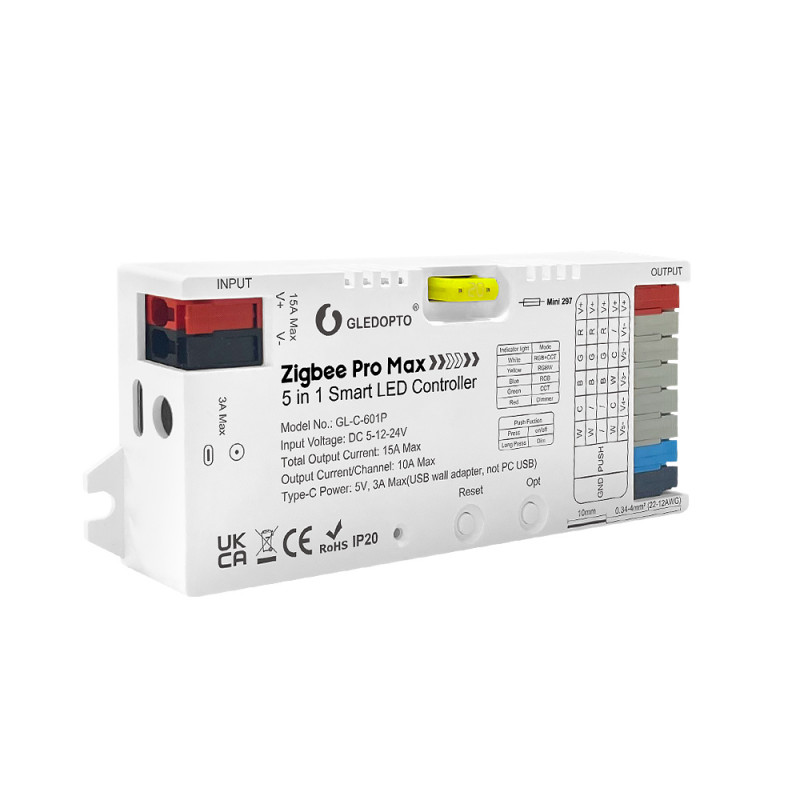

GL-C-601P LED Controller - 5 in 1 - Zigbee 3.0 and 2.4 GHz RF

The GLEDOPTO GL-C-601P is a 5-in-1 LED controller that allows you to control your LED strip. This Zigbee LED controller is suitable for LED strips with a voltage between 5 and 24 volt and a maximum current of 15 ampere in total and 10 ampere per channel.

GLEDOPTO Zigbee Pro Max

The GL-C-601P is part of GLEDOPTO’s latest Zigbee Pro Max series. A new feature is a replaceable plug-in fuse: a 20 ampere fuse is installed by default, but a 5 ampere fuse is also enclosed. You can power the LED controller via:

• the lever terminals (up to 15 ampere)
• the 5.5x2.1 mm DC jack (up to 3 ampere)
• USB Type-C (5 volt, up to 3 ampere)

Thanks to the lever terminals, installation is simple and you don’t need to use a screwdriver. These lever terminals are suitable for wires with a gauge of 0.34 to 4 mm² (22 to 12 AWG).

This LED controller uses PWM dimming. The frequency can be set to 600, 800, 1000, 2000, 4000 or 8000 Hz using the Reset button.

By holding down the Opt button for at least 5 seconds, you can set whether the LED controller remembers the last status in the event of a power failure or always turns on when power is restored.

5-in-1 LED controller

The GLEDOPTO GL-C-601P is a 5-in-1 LED controller. This means it works with virtually all types of LED strips:

• mono (single colour)
• CCT (adjustable colour temperature)
• RGB (adjustable colour)
• RGBW (adjustable colour and white)
• RGBCCT (adjustable colour and adjustable colour temperature)

With a press of the Opt button, you can switch between these modes. The indicator light shows the current mode:

• red: mono
• green: CCT
• blue: RGB
• yellow: RGBW
• white: RGBCCT

Zigbee LED controller

This GLEDOPTO LED controller operates on Zigbee 3.0, a wireless protocol specifically developed for home automation. This makes the LED controller compatible with Home Assistant, Zigbee2MQTT, Philips Hue, Amazon Echo Plus, SmartThings and Homey, amongst others. Thanks to this Zigbee LED controller, you can control your LED strip remotely using your favourite home automation platform.

You can also control the GL-C-601P in the following ways:

• through a 2.4 GHz RF remote control from GLEDOPTO
• through an external push button that you can connect (press to switch on or off, hold to adjust the brightness)
