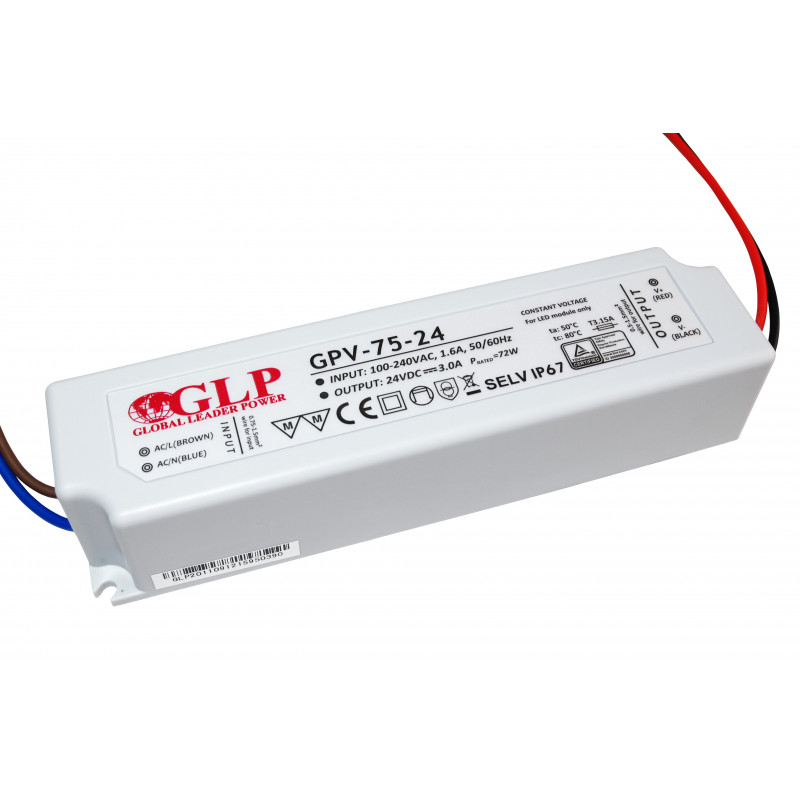

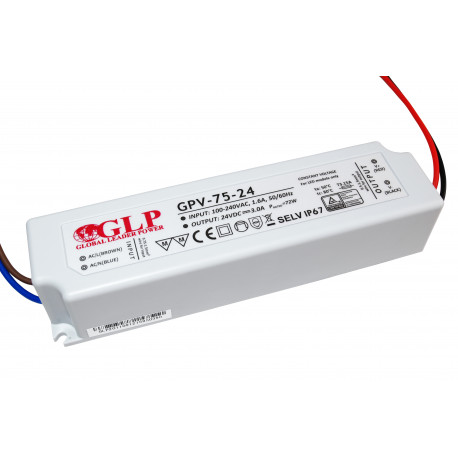

GPV-75-24 Constant Voltage LED Power Supply - 24 Volt - 3 Ampere - 72 Watt

Manufacturer:

This waterproof power supply is ideal for powering 24 volt LED lighting up to 3 ampere.

This product is no longer in stock

18,50 € incl. VAT, excl. shipping

Webwinkel Keurmerk

More info

Global Leader Power GPV series

The GPV series from Global Leader Power are our best-selling power supplies. These LED power supplies are waterproof (IP67) allowing you to use them for example outdoors. They are also suitable for installation on furniture made of materials with unknown flammability properties. With the exception of the GPV-18 series, these power supplies accept all international mains voltages from 90 to 264 volts as input voltage, making them usable in other countries as well. In addition, they meet all safety requirements and include short-circuit protection.

Data sheet

IP code IP67
Output voltage 24 volt
Output current 3 ampere
Power 72 watt
Line regulation ±1%
Load regulation ±2%
Tolerance ±5%
Ripple and noise 300 millivolt peak to peak
Input voltage 90 to 264 volt
Input frequency 47 to 63 hertz
Efficiency 86%
Leakage current 0.25 milliampere
Setup time 500 milliseconds
Rise time 250 milliseconds
Hold up time 50 milliseconds
Protection Over current, Over voltage, Short circuit
Working temperature -30 to 70 °C
Working humidity 20 to 90%
Storage temperature -40 to 80 °C
Storage humidity 10 to 95%
